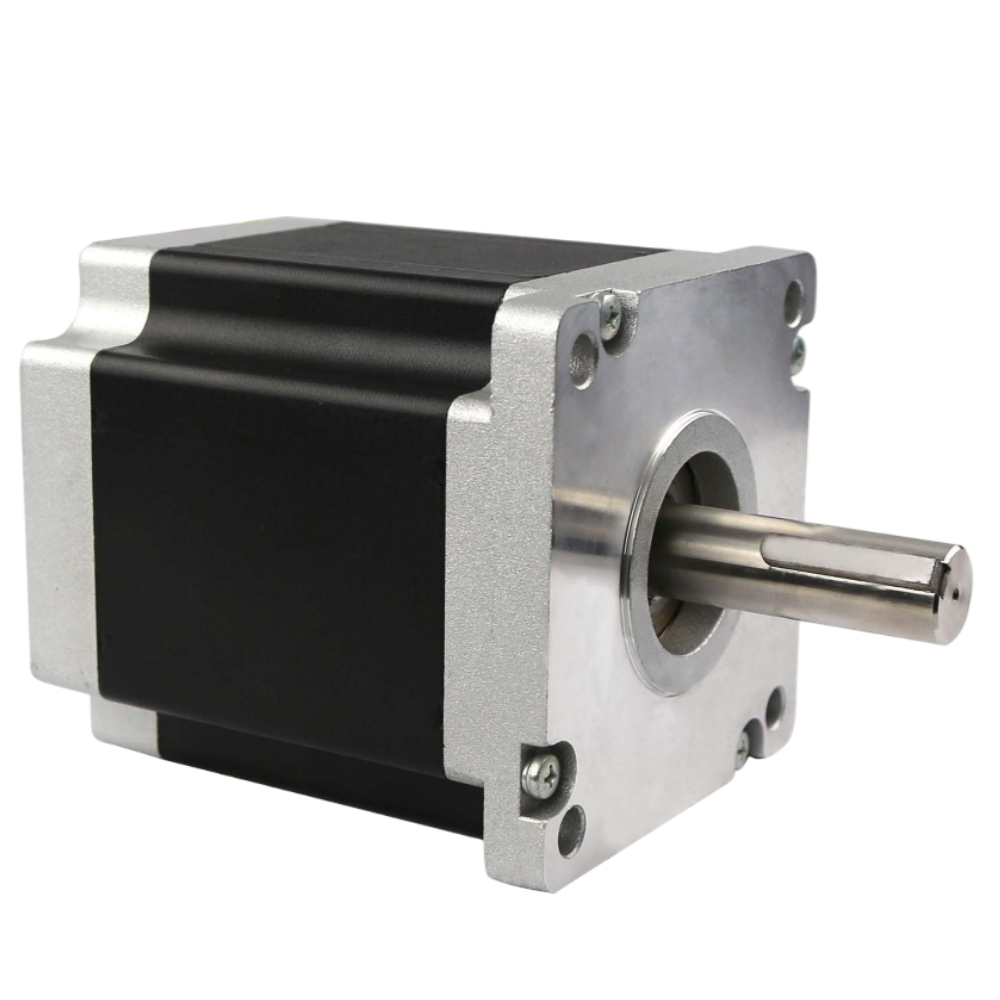

2-Phase Hybrid Stepper Motor Flange Size 86mm high torque Nema 34 6A
|
项目Item |
说明Specification |
|
步矩角精度Step Angle Accuracy |
5%(整步无负载full step, no load) |
|
温升Temperature Rise |
85℃ Max |
|
环境温度Ambient Temperature |
-20℃~+50℃ |
|
绝缘电阻Insulation Resistance |
100MΩ, 500VDC |
|
介电强度Dielectric Strength |
500VAC/minute |
|
电机型号 |
每相电流 |
每相电阻Resistance |
每相电感Inductance |
静转矩Holding Torque |
转动惯量 |
引出线数 |
机身长度 |
重量 |
|
单输出轴 |
A |
Ω |
mH |
N·m |
g·cm² |
# |
mm |
kg |
|
AW43HS99-5504A |
5.5 |
0.9 |
12 |
11 |
5.5 |
4 |
99 |
5 |
|
AW43HS150-6804A |
6.8 |
0.8 |
15 |
21 |
10.9 |
4 |
150 |
8.4 |
|
AW43HS165-6004A |
6.0 |
0.8 |
14 |
24 |
12.5 |
4 |
165 |
9.5 |
|
AW43HS201-8004A |
8.0 |
0.67 |
12 |
28 |
16.2 |
4 |
201 |
11.7 |
备注：我们可以根据客户要求定制电机的电气参数、电机输出轴尺寸等形状，也可以增配行星减速箱、编码器等。
Note: We can customize the electrical parameters of the motor, the dimensions of the motor output shaft, and other shapes according to customer requirements. We can also add accessories such as planetary gearboxes and encoders.
