项目Item

说明Specification

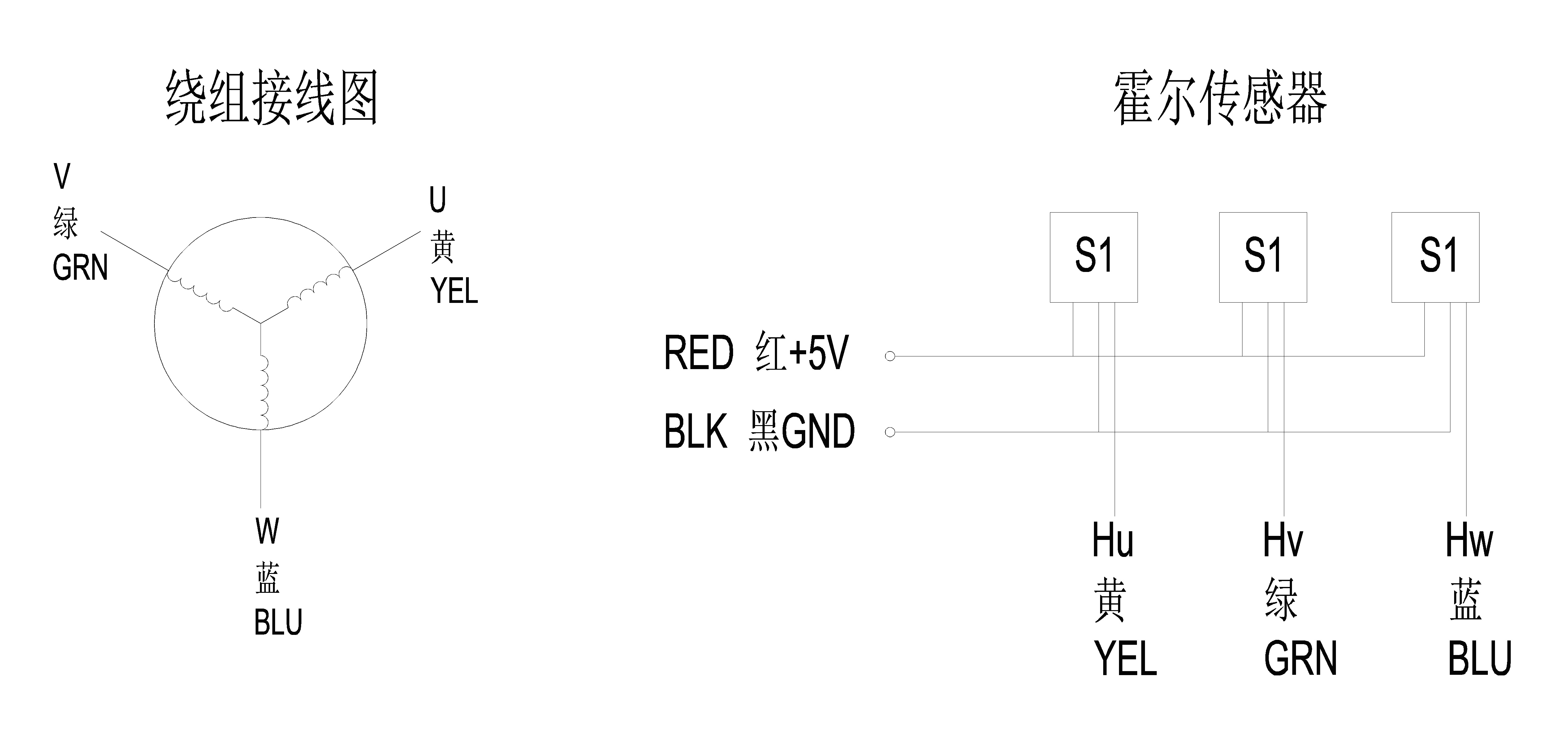

绕组方式Winding Type

星形连接Star Connection

霍尔电位角度Hall Effect Angle

120°电角度 Electrical Angle 120°

绝缘等级Insulation Class

B级绝缘 Class B

环境温度Ambient Temperature

-20℃~+50℃

绝缘电阻Insulation Resistance

100MΩ, 500VDC

介电强度Dielectric Strength

700VAC/minute

型号Model

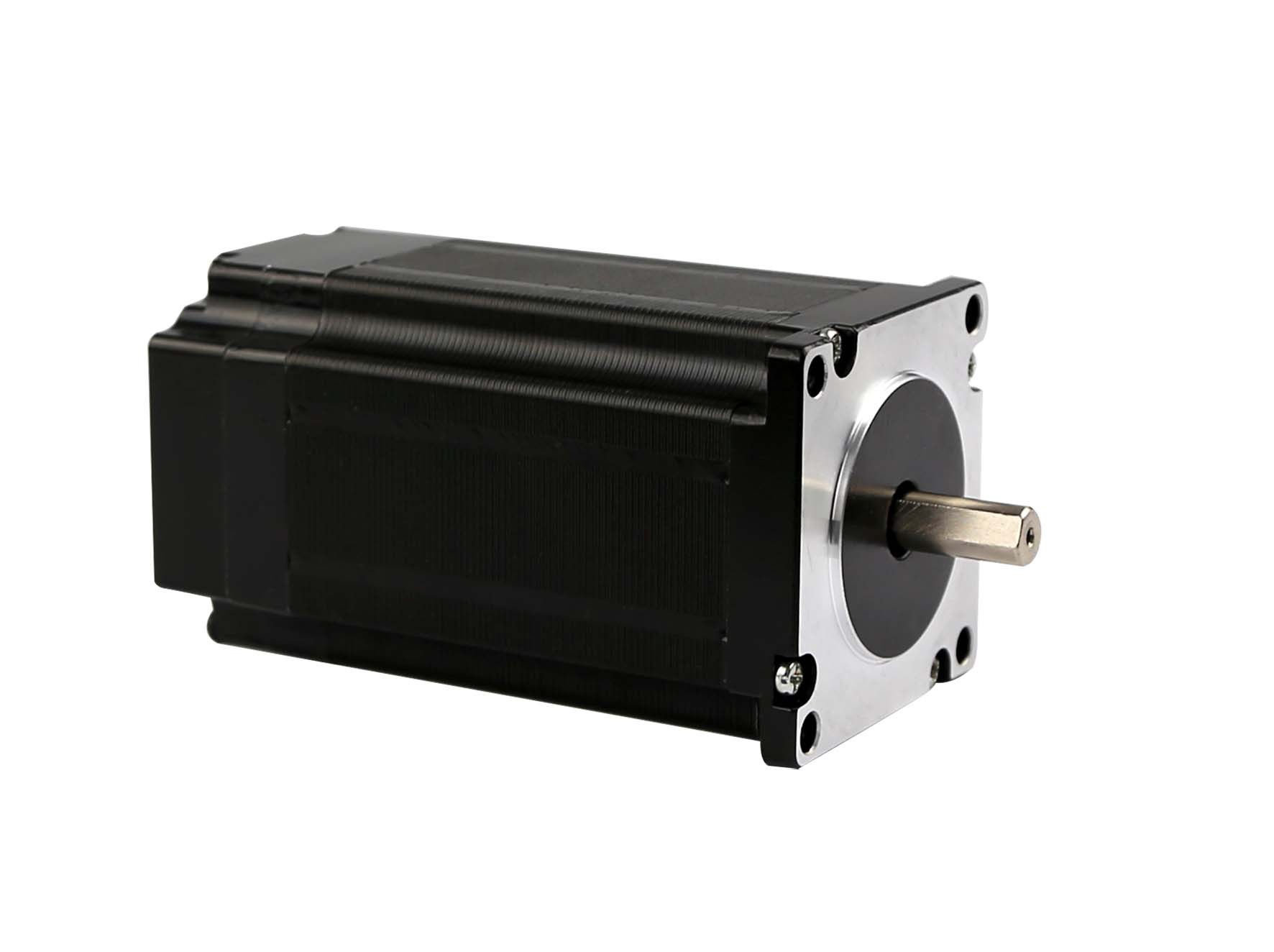

AW23BLF59-230

AW23BLF80-230

AW23BLF101-230

AW23BLF122-330

极数Number of Poles

8

相数Number of Phases

3

额定电压 Rated Voltage

VDC

24

24

24

36

额定转速 Rated Speed

RPM

3000

额定扭矩 Rated Torque

N.m

0.2

0.4

0.6

0.8

额定电流 Rated Current

Amps

4

7.8

12

15

输出功率 Output Power

Watts

63

125

188

250

峰值扭矩Peak Torque

N.m

0.6

1.2

1.8

2.4

峰值电流Peak Current

Amps

12

23.5

36

45

扭矩系数Torque Constant

N.m/A

0.065

0.066

0.066

0.066

反电势  Back EMF

Vrms

/KRPM

6.23

6.3

6.3

6.3

转动惯量 Rotor Inertia

g·cm²

120

170

220

270

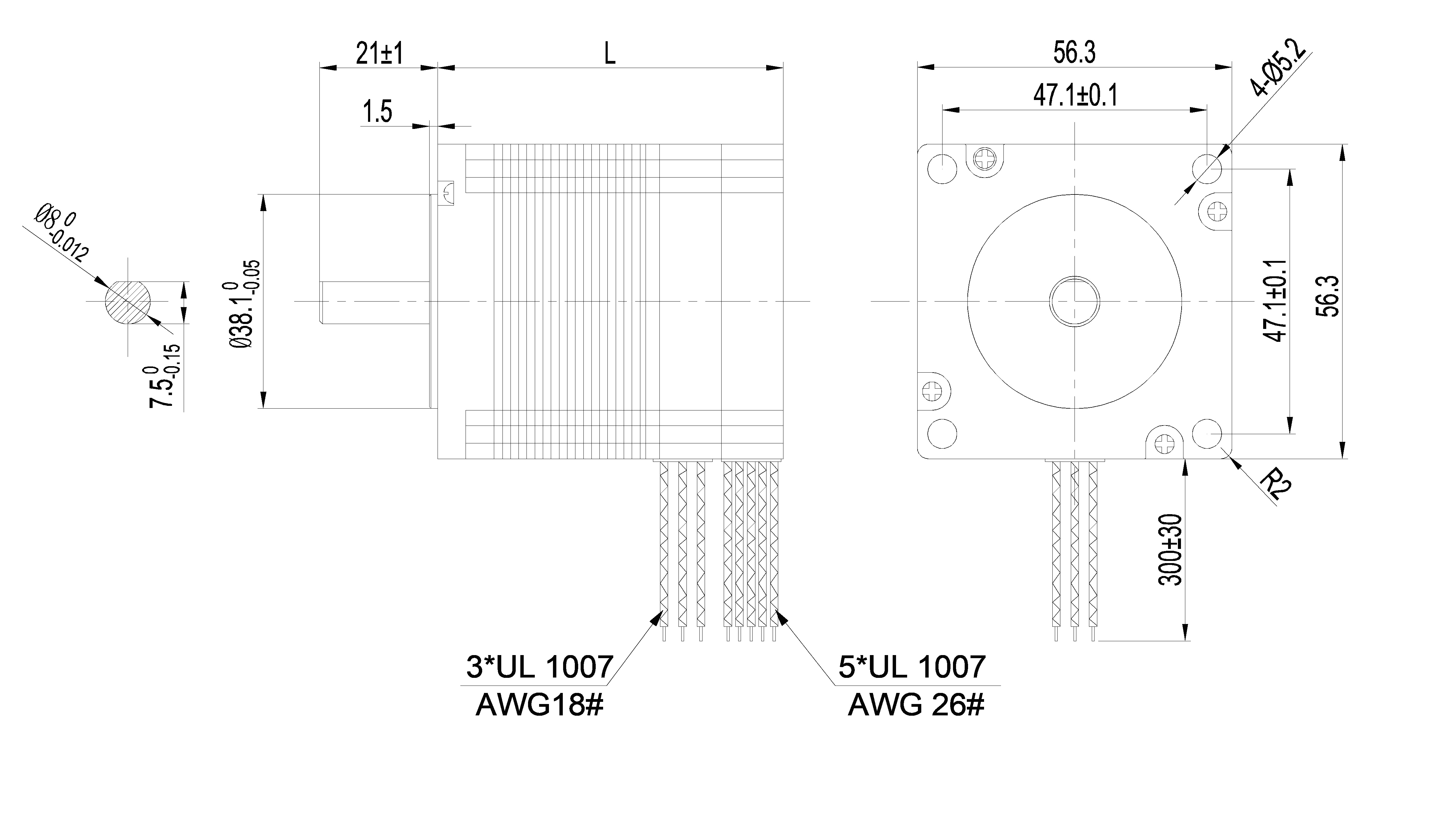

机身长度Body Length

mm

59

80

101

122

重量Weight

kg

0.65

1.0

1.4

2.0
