项目Item

说明Specification

绕组方式Winding Type

星形连接Star Connection

霍尔电位角度Hall Effect Angle

120°电角度 Electrical Angle 120°

绝缘等级Insulation Class

B级绝缘 Class B

环境温度Ambient Temperature

-20℃~+50℃

绝缘电阻Insulation Resistance

100MΩ, 500VDC

介电强度Dielectric Strength

700VAC/minute

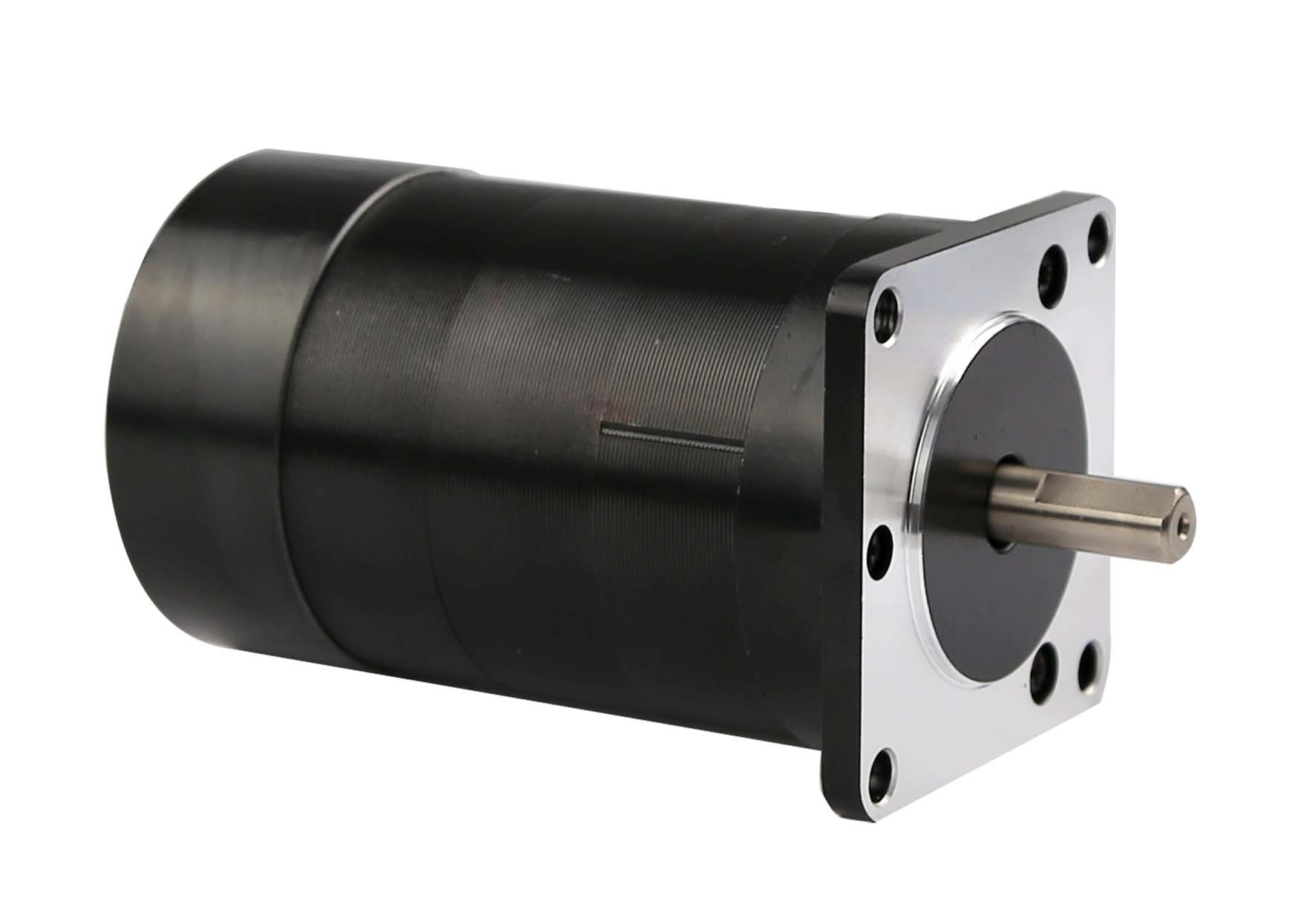

型号Model

AW23BLY45-230

AW23BLY55-230

AW23BLY75-230

AW23BLY95-230

AW23BLY115-230

极数Number of Poles

8

相数Number of Phases

3

额定电压 Rated Voltage

VDC

24

额定转速 Rated Speed

RPM

3000

额定扭矩 Rated Torque

N.m

0.055

0.11

0.22

0.33

0.45

额定电流 Rated Current

Amps

1.16

2.4

4.8

6.6

8.6

输出功率 Output Power

Watts

17

35

70

105

140

峰值扭矩Peak Torque

N.m

0.165

0.33

0.66

0.99

1.35

峰值电流Peak Current

Amps

3.48

7.2

14.4

19.8

25.8

扭矩系数Torque Constant

N.m/A

0.052

0.06

0.06

0.063

0.063

反电势  Back EMF

Vrms

/KRPM

3.8

6.6

6.6

6.6

6.6

转动惯量 Rotor Inertia

g·cm²

32

75

119

173

230

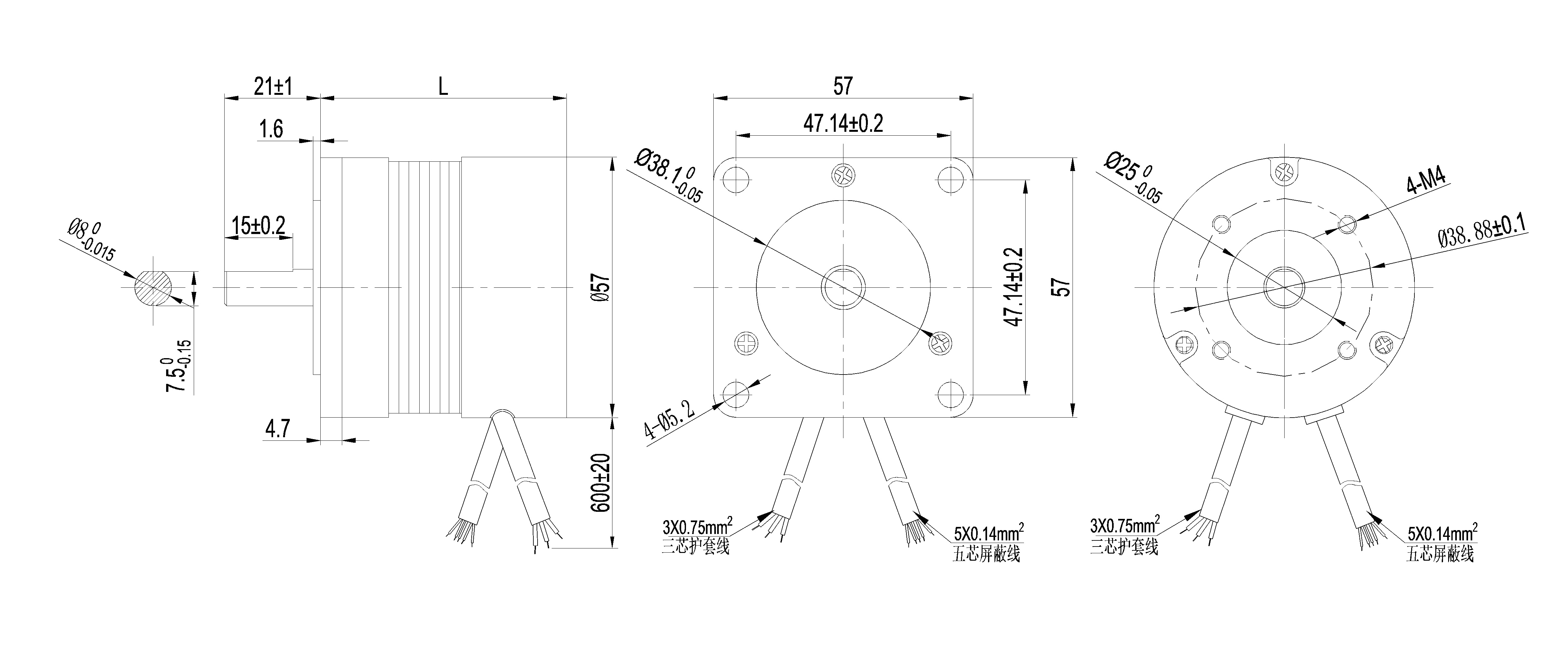

机身长度Body Length

mm

45

55

75

95

115

重量Weight

kg

0.33

0.44

0.75

1.0

1.25
