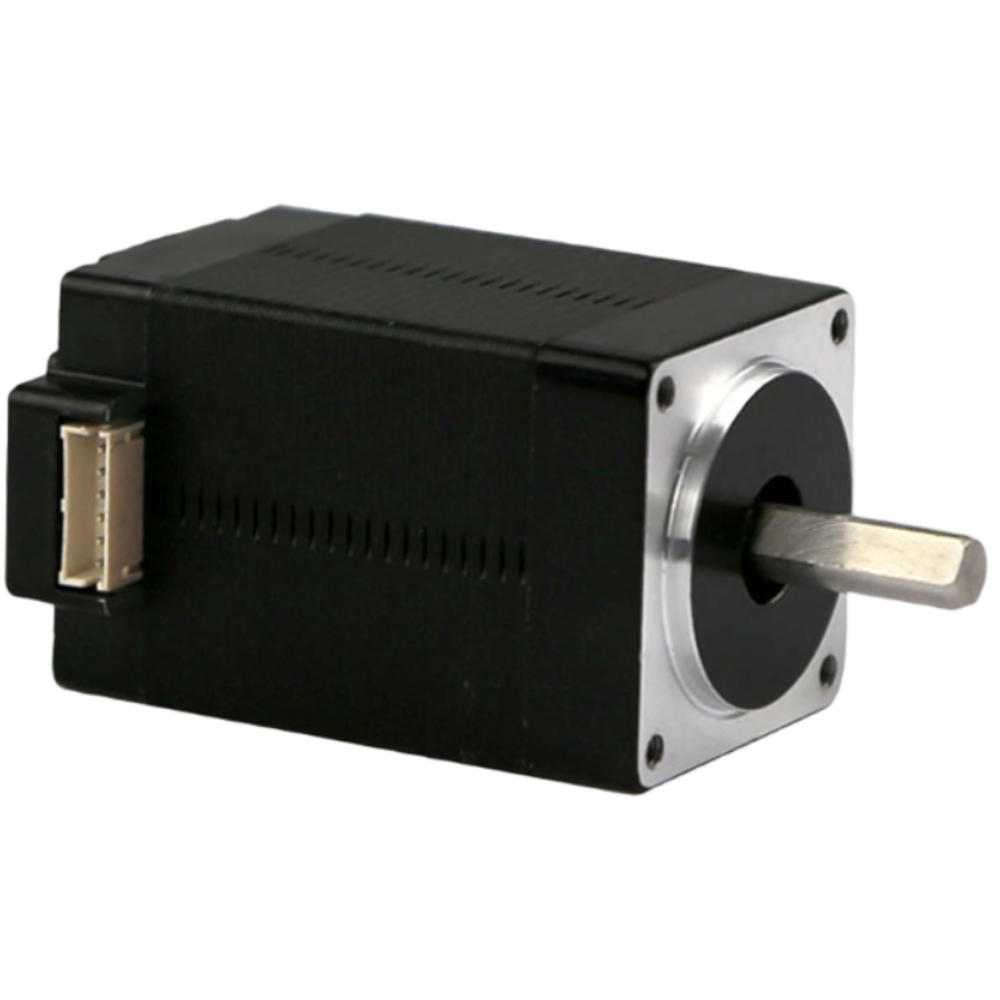

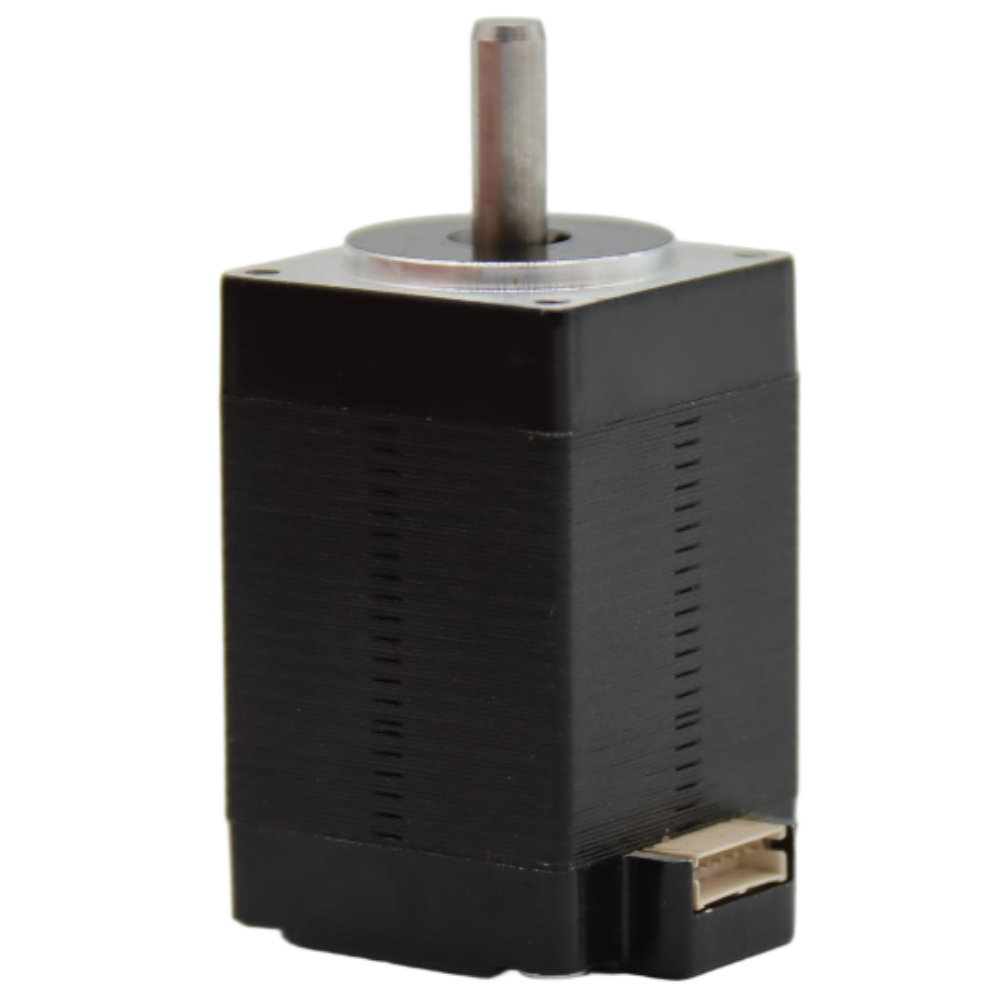

AW11HS

Name: AW11HS
Brand: APEXWELL MOTOR
SKU: Two-phase 1.8° Nema 11 28mm hybrid stepper motor
Availability: InStock
Rating: 5 (1 reviews)

No.Two-phase 1.8° Nema 11 28mm hybrid stepper motor

the 28mm stepper motor is an optimal choice when the design priorities are miniaturization, cost-efficiency, and adequate precision for light to medium loads.
Motor diameter: Nema 11 (28mm)
Body Length: 33mm/45mm/48mm
Holding Torque: 0.06 N·m~0.09 N·m
Step angle: 1.8°

OPTION:

Technical Parameters

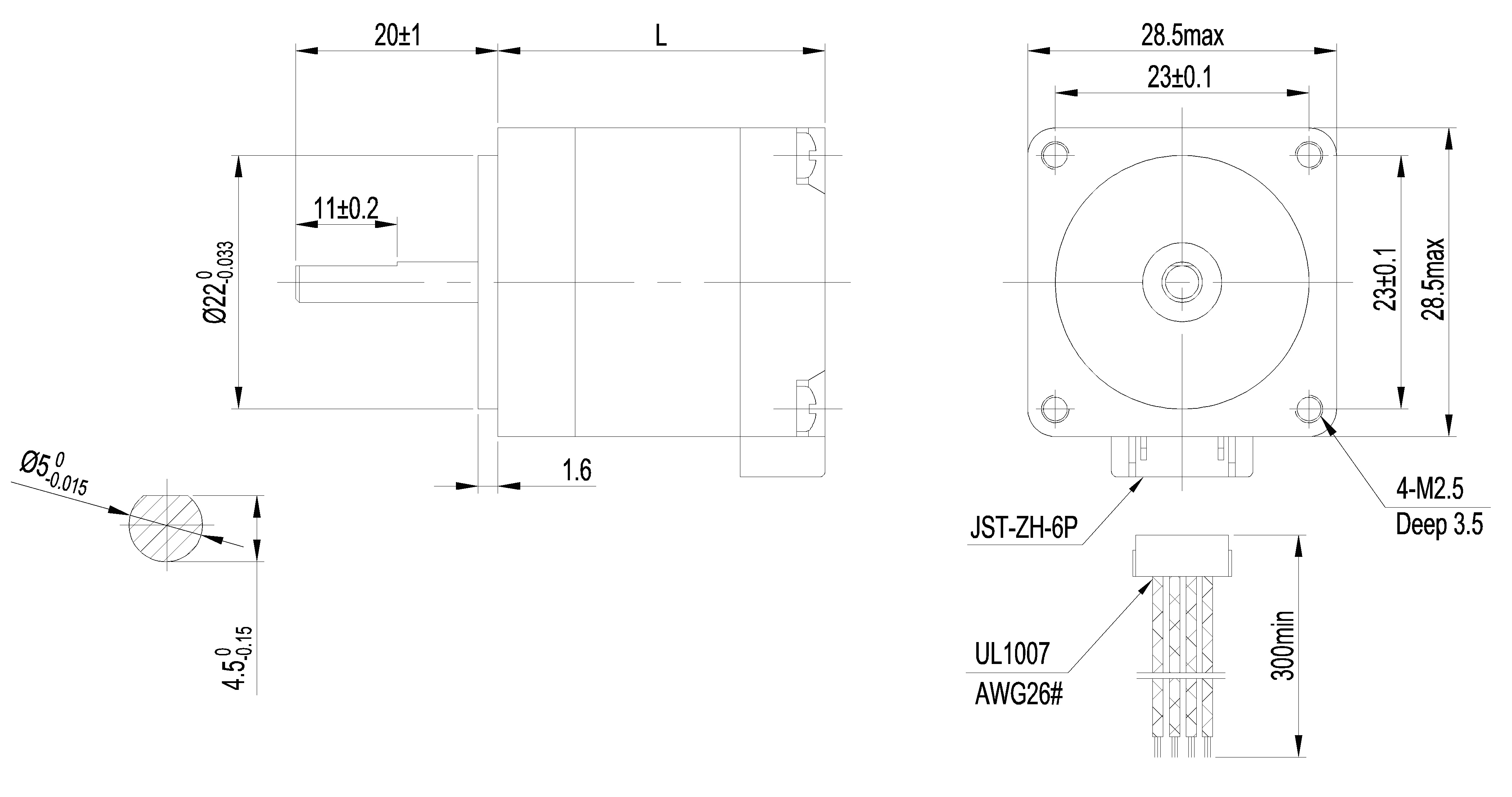

Overall Dimensions
Wiring Diagram
Contact Us

1、常规参数General Specification

项目Item	说明Specification
步矩角精度Step Angle Accuracy	5%(整步无负载full step, no load)
温升Temperature Rise	85℃ Max
环境温度Ambient Temperature	-20℃~+50℃
绝缘电阻Insulation Resistance	100MΩ, 500VDC
介电强度Dielectric Strength	500VAC/minute

2、电气性能Electrical Specification

电机型号 Model No.	每相电流 Current /Phase	每相电阻Resistance /Phase	每相电感Inductance /Phase	静转矩Holding Torque	转动惯量 Rotor Inertia	引出线数 # of Leads	机身长度 Body Length	重量 Weight
单输出轴 Single shaft	A	Ω	mH	N·m	g·cm²	#	mm	kg
AW11HS33-0804A	0.8	5.3	3.3	0.06	8	4	33	0.11
AW11HS45-0804A	0.8	7.8	5.4	0.08	11	4	45	0.14
AW11HS48-0804A	0.8	8.6	6.7	0.09	13	4	48	0.18

备注：我们可以根据客户要求定制电机的电气参数、电机输出轴尺寸等形状，也可以增配行星减速箱、编码器等。
Note: We can customize the electrical parameters of the motor, the dimensions of the motor output shaft, and other shapes according to customer requirements. We can also add accessories such as planetary gearboxes and encoders.
