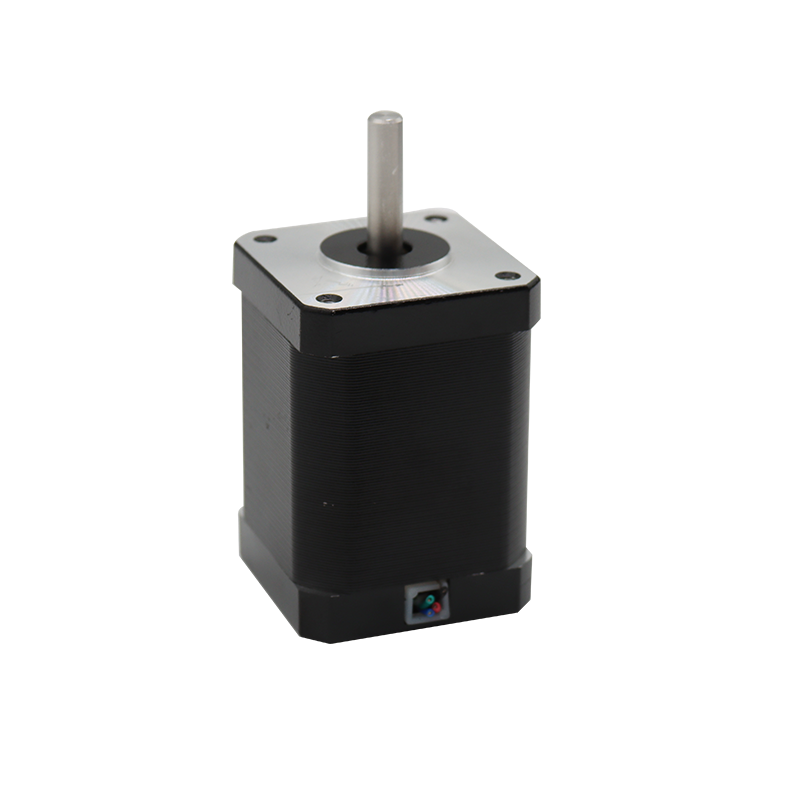

AW17BLF

Name: AW17BLF
Brand: APEXWELL MOTOR
SKU: Nema 17 (42mm) Series Square BLDC Motor
Availability: InStock
Rating: 5 (1 reviews)

No.Nema 17 (42mm) Series Square BLDC Motor

42mm Nema 17 series brushless dc motor have high power density,high efficiency,Long Lifespan and Reliability,Excellent Speed-Torque Characteristics,Smooth and Quiet Operation,Precise Control,is widely used in Robotics,Drones and UAVs (Unmanned Aerial Vehicles),Medical and Laboratory Equipment,Industrial Automation.
Rated speed: 4000rpm
Rated voltage: 24V
Body Length: 40mm/60mm/80mm/100mm
Output power: 26W~105W

OPTION:

Technical Parameters

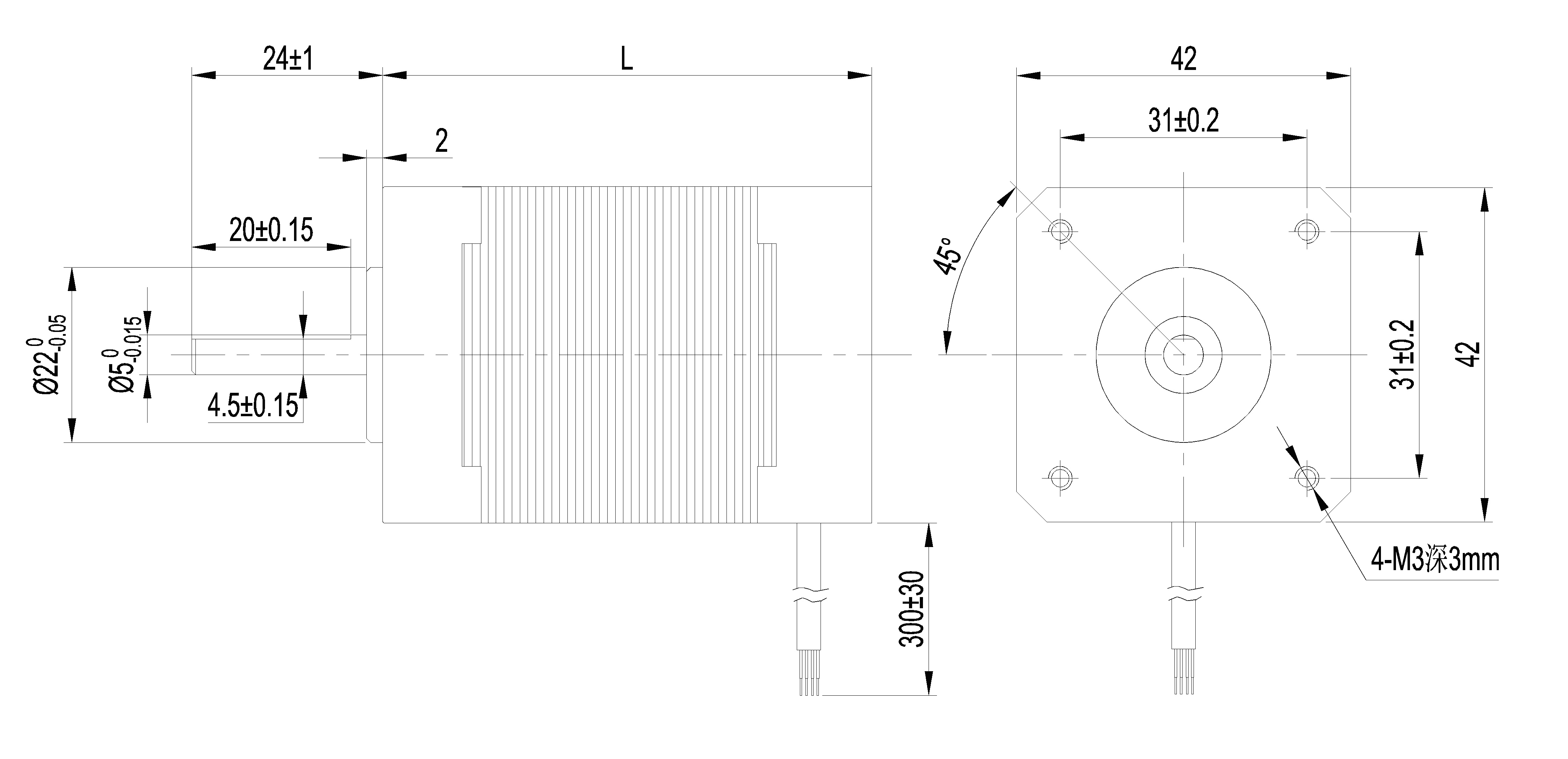

Overall Dimensions
Wiring Diagram
Contact Us

1、常规参数General Specification

项目Item	说明Specification
绕组方式Winding Type	星形连接Star Connection
霍尔电位角度Hall Effect Angle	120°电角度 Electrical Angle 120°
绝缘等级Insulation Class	B级绝缘 Class B
环境温度Ambient Temperature	-20℃~+50℃
绝缘电阻Insulation Resistance	100MΩ, 500VDC
介电强度Dielectric Strength	700VAC/minute

2、电气性能Electrical Specifications

	型号Model	AW17BLF45-240	AW17BLF60-240	AW17BLF80-240	AW17BLF100-240
极数Number of Poles		8
相数Number of Phases		3
额定电压 Rated Voltage	VDC	24
额定转速 Rated Speed	RPM	4000
额定扭矩 Rated Torque	N.m	0.0625	0.125	0.185	0.25
额定电流 Rated Current	Amps	1.8	3.5	5.2	6.6
输出功率 Output Power	Watts	26	52	78	105
峰值扭矩Peak Torque	N.m	0.18	0.38	0.55	0.75
峰值电流Peak Current	Amps	5.4	10.5	15.6	20
扭矩系数Torque Constant	N.m/A	0.035	0.036	0.036	0.0376
反电势 Back EMF	Vrms /KRPM	2.45	2.71	2.74	2.62
转动惯量 Rotor Inertia	g·cm²	24	48	72	96
机身长度Body Length	mm	45	60	80	100
重量Weight	kg	0.33	0.45	0.65	0.8

备注：我们可以根据客户要求定制电机的电气参数、电机输出轴尺寸等形状，也可以增配行星减速箱、编码器等。
Note: We can customize the electrical parameters of the motor, the dimensions of the motor output shaft, and other shapes according to customer requirements. We can also add accessories such as planetary gearboxes and encoders.
